CCTV Transmitters & Controllers  (292)

Coax/Twisted Pair, 128 channels, 12 outputs, 360 presets, 0 ~ 90, 24 V DC, 5 ~ 40, 430 x 268 x 90, 6,200

Coax/Twisted Pair, 32 channels, 4 outputs, 360 presets, 0 ~ 90, 24 V DC, 5 ~ 40, 430 x 134 x 90, 3,100

Coax/Twisted Pair, 256 channels, 12 outputs, 360 presets, 0 ~ 90, 24 V DC, 5 ~ 40, 430 x 536 x 90, 12,400

Combined video and 8 camera control unit with 1 remote keypad. With VHS video cassette recorder. Up to 10 ancillary products (remote keypads, floodlight control units, infrared receivers) can be connected. Opti-Cam also integrates with intruder alarm panels. Records automatically when activated by PIR movement detection.

The LTC 4744 Transmitter and LTC 4745 Receiver are designed for the transmission of up to 4 CCTV analog video signals using one multimode fiber cable. This link operates in the 1310 nm range and incorporates 8-bit video encoding exceeding the requirements of EIA RS-250C for Medium Haul video transmissions. Integral LED status indicators provide an indication of operating parameters.

Bosch LTC 8785/50 data converter unit is designed for use in very old Allegiant systems that have been upgraded to support ‘variable speed’ control code protocol. This converter provides a source of 'fixed speed' control code when the system is generating the new ‘variable speed’ control code preferred by the AutoDome series of PTZ cameras.

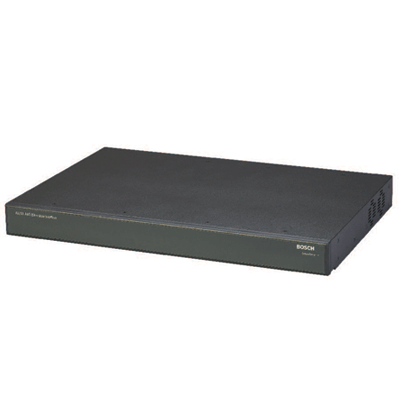

The LTC 8016/90 Allegiant Bilinx Data Interface unit is an accessory used for communicating over-the-coax, with up to16 Bilinx-capable AutoDome® and/or DinionTM Series cameras. Compatible with all seven Allegiant Series matrix switcher/controllers, the LTC 8016 provides complete control of pan/tilt/zoom, auxiliaries, and pre-position functions of Bilinx enabled AutoDome Series cameras. In addition, complete programming of Dinion Series cameras and AutoDomes via their on-screen menus is supported.

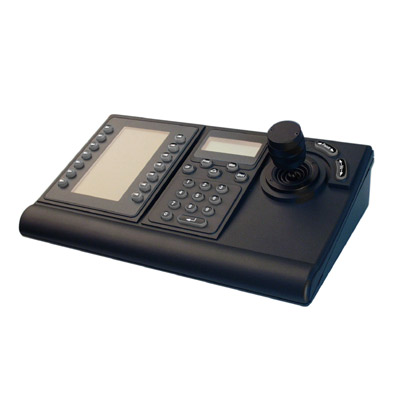

IntuiKey series keyboards.  Control matrix, DVR, and IP video products with one keyboard.  Plug-and-play with Bosch Switchers, DVRs, Multiplexers, and IP solutions.  Integral variable speed pan/tilt/zoom (PTZ) joystick.  Splash-resistant design.  Optional rack mount kit.

Surveillance joystick controller for speed-dome cameras.

The VP-RS2BLNX is a protocol converter that allows the integration of remotely accessible cameras for control and set-up into an (existing) RS-232 or RS-485 infrastructure.

For the control of digital video recorders.

The type drx300 receiver controls pan, tilt and lens functions with a single selectable auxiliary output. Telemetry signals are via the coax or twisted pair 20mA current loop.

For the control of digital video recorders.

The Vigitron Vi6100VT is an advanced active device that transmits high resolution colour or B&W video over unshielded twisted pair wires.  The Vi6100VT uses Category 2-7 UTP wire at distances up to 6,000 feet (1830 m) and is designed to be paired with any Vigitron Vi6100 series Active Receivers.

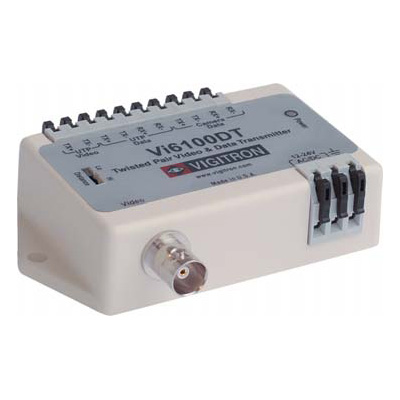

The Vigitron Vi6100DT is an advanced active device that transmits colour or B&W video and data over separate point-to-point unshielded twisted pair wires at distances up to 6000 feet (1830 m). The Vi6100DT uses Category 2-7 twisted pair wires, is easy to install and cost effective. It is designed to be paired with Vigitron Vi6100DR active video and data receiver.

RS485 transmission system.

For the control of digital video recorders.

ZoneVu system keyboard with engineer log in for configuration of ZoneVu systems PCI Mode support for use with Meyertech’s Fusion-Core VMS software application Menu driven soft-key navigation with user configurable keys Multi-Site mode support for control of ZoneVu multi-site system architectures 3-axis fully proportional joystick for camera or dome control Integrated control of digital recording systems PC back-up and restore of keyboard configuration using MPower software

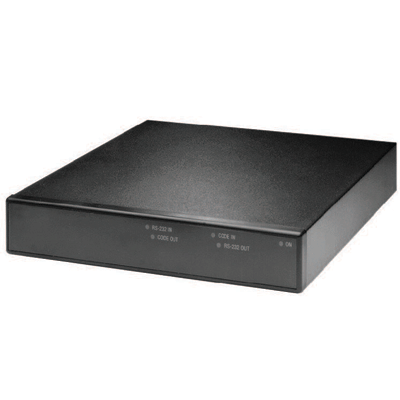

The LTC 8780 Series are accessory units that convert the Allegiant system's Bi-Phase control code into RS-232, or convert RS-232 back to Bi-Phase code. They provide the capability of transmitting the control code over conventional RS-232 transmission mediums such as phone modems, fiber optics, microwaves, etc.

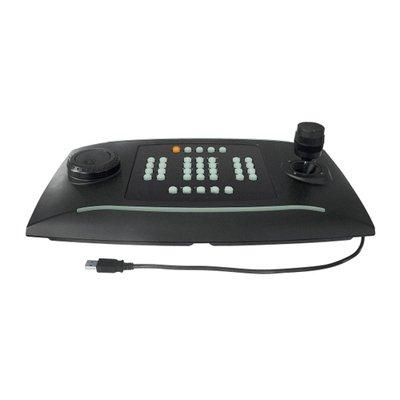

Small compact design. 3D joystick with hall-effect. Variable speed pan/tilt/zoom control. Plug-and-Play installation. USB interface.

Bosch LTC 8555/01 is a compact full-function keyboard.

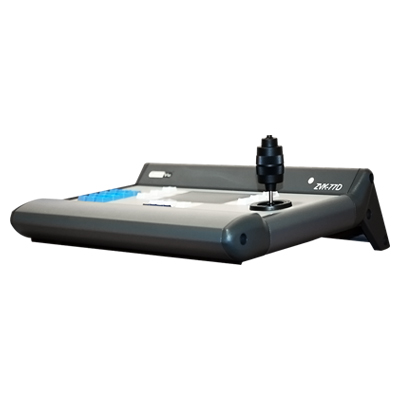

3-axis fully proportional joystick for ‘pin-point’ camera and dome control Designed for Left handed and Right handed operation Large backlit LCD graphical display combining text and status information System alarm management facilities

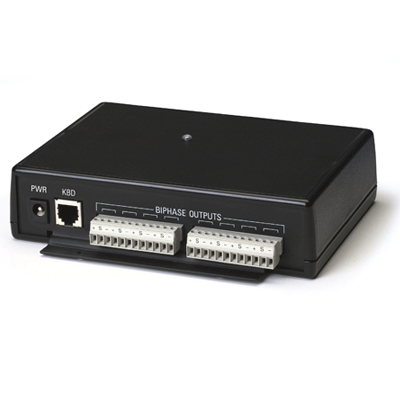

The LTC 8786 Series of data converters are designed to convert Bosch "Receiver/Driver and AutoDome RS-232 Control Code Protocol" into Allegiant Bi-Phase control code. These units are specifically designed to transform a single data output from a PC-based DVR (or a similar device) into multiple control code outputs for operating AutoDome cameras.

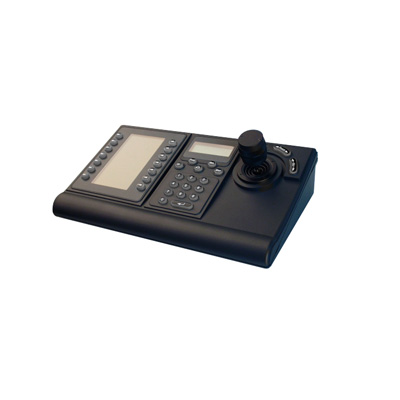

The IntuiKey Series keyboards are full function, multipurpose keyboards used for system control and programming. The IntuiKey includes an integral variable speed pan/tilt/zoom (PTZ) joystick and a splash resistant design. An optional rack mount kit allows the IntuiKey to be mounted in a standard EIA 48 cm (19 in.) rack.

Pre-mapped buttons to perform a host of popular funtions in Wavestore’s WaveView client software Compatible with Windows and Linux client PCs, including direct connection to Wavestore servers with on-board WaveView client software 4-axis joystick for pan, tilt and zoom control Jog-shuttle for single frame-step control up to x8192 fast forward and rewind speeds

Wavestore Video Wall Controllers facilitate the display of live video streams captured by a host of camera technologies, such as HD, 4K, thermal and 360° cameras.Options are available for six or eight monitor connections per controller, with a choice of 1080p or 4K maximum resolution per monitor. Virtually any monitor can be used within the solution from commodity to professional models and yop row monitors can be flipped upside down to reduce the bezel size against the monitor row below them for an enhanced viewing experience.

Wavestore Video Wall Controllers facilitate the display of live video streams captured by a host of camera technologies, such as HD, 4K, thermal and 360° cameras.Options are available for six or eight monitor connections per controller, with a choice of 1080p or 4K maximum resolution per monitor. Virtually any monitor can be used within the solution from commodity to professional models and yop row monitors can be flipped upside down to reduce the bezel size against the monitor row below them for an enhanced viewing experience.

Wavestore Video Wall Controllers facilitate the display of live video streams captured by a host of camera technologies, such as HD, 4K, thermal and 360° cameras.Options are available for six or eight monitor connections per controller, with a choice of 1080p or 4K maximum resolution per monitor. Virtually any monitor can be used within the solution from commodity to professional models and yop row monitors can be flipped upside down to reduce the bezel size against the monitor row below them for an enhanced viewing experience.

Bosch LTC 8540/00 alarm interface unit accepts up to 64 contact closures or logic level inputs from remote sensing devices such as door contacts, PIRs, etc. and then reports the “alarm” information to the main Allegiant CPU bay. Alarm inputs may be configured in groups of 32 to accept either normally open or normally closed contacts. Unit also contains eight relay outputs that activate automatically upon alarm conditions. A two meter (6 ft) interface cable for data/power between unit and main CPU bay is supplied.

Bosch LTC 8568/00 signal distribution unit provides 32 separate outputs for driving up to 256 remote devices. Either “star” or “daisy chain” wiring configurations may be used. Two meter (6 ft) interface cable for data/power between unit and main Allegiant CPU bay supplied.

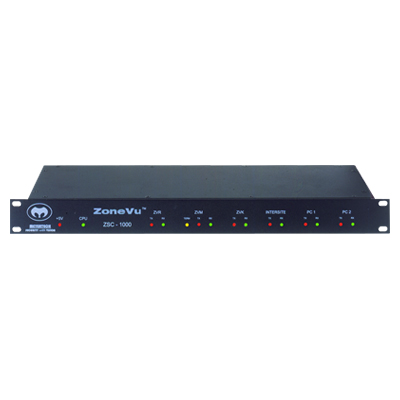

Convergence of IP technology and traditional CCTV technologies Control multiple sites via a single RS485 data path Robust embedded firmware design ensures system stability Multiple independent camera/dome ports provide multi-protocol support Integration of disparate independent systems Extensive OEM telemetry receiver and dome driver embedded firmware library

The Dedicated Micros DM/KBC1 is a touch keyboard for SD Advanced hybrid DVR/NVR. The SD Advanced DVR/NVR offers up to 32 camera connections in a combination of analogue or IP.

KBC01 is a Dedicated Micros touch keyboard for SD.

Bosch LTC 8569/50 code merger unit provides 32 separate outputs capable of driving up to 256 remote devices.

Bosch LTC 8786/60 biphase converter provides up to 16 Bi-Phase control code outputs. Each output operates up to 8 devices in a daisy chain.

Bosch LTC 8782/50-10 is a code translator. It provides full pan/tilt/zoom (PTZ) code conversions and incorporates front panel diagnostic indicators.

Bosch LTC 8712/50 is a port expander.

Bosch LTC 8780/60 data converter unit is designed for various applications utilising Allegiant series switchers. This converter provides satellite address decoding and 15 separate outputs.

Bosch LTC 8770/50 switcher/follower unit is designed to operate with devices that generate Allegiant Bi-Phase control code. In addition, six functional operating modes are available, including one user activated test mode.

Bosch LTC 8570/50 code merger unit provides 32 separate outputs capable of driving up to 256 remote devices.
