CCTV Transmitters & Controllers  (292)

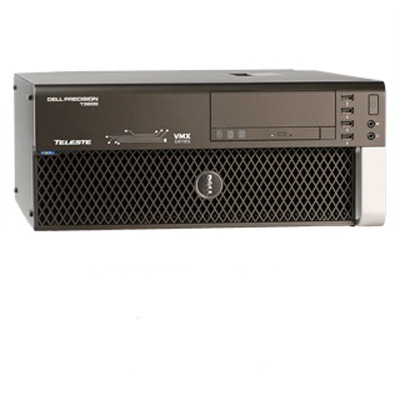

Professional video wall receiver is an add-on appliance available to larger S-VMX systems with more than 50 cameras. It is a cost-efficient solution for systems having a need to feed high channel count of SD video across multiple monitors or multiple HD videos to spot monitors.

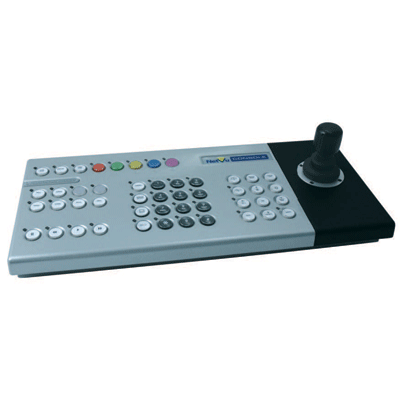

NetVu Console is connected to the associated units and cameras via an IP connection, utilising the IP/Analogue conversion capability of its embedded decoder. The flexibility of the unit allows operators to control cameras from a number of NetVu Connected DVRs or Servers, providing greater freedom to users wishing to expand the control of their network without incurring the signifi cant associated cost.

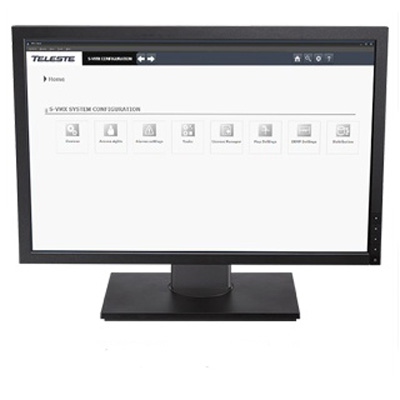

S-VMX video wall controller is an optional component of Teleste video system. It provides a cost efficient alternative for video wall systems. S-VMX video wall controller is a standalone node providing a video wall decoding functionality.

Professional video wall receiver is an add-on appliance available to larger S-VMX systems with more than 50 cameras. It is a cost-efficient solution for systems having a need to feed high channel count of SD video across multiple monitors or multiple HD videos to spot monitors.

c/w manual/alarm preset positioning. Operated by front button-panel, infra red remote control or computer using RS422. Auto iris over ride (manual iris) no auto-pan.

Optional patrol function.

Twisted Pair, 1 channels, 1 outputs, 0 ~ 85, IP65, Weather Resistant, 10, >66, 230 V AC, 4 W, -25 ~ +50, 120 x 75 x 220, 750

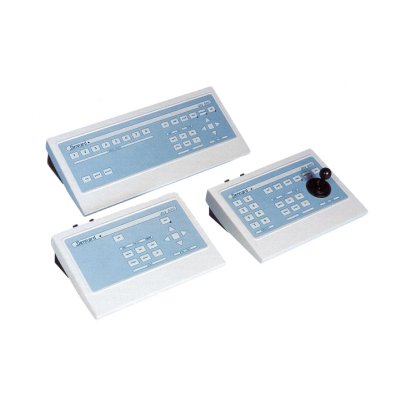

The dtx 500 is an 8 camera, 1 monitor coaxial telemetry controller with sequential switcher. Pan & Tilt, Lens, 4 Auxiliaries, 8 Presets per camera, Preset patrol mode, alarm input for camera 1 and on-screen camera identification. Low voltage operation. Large range of receiver options.

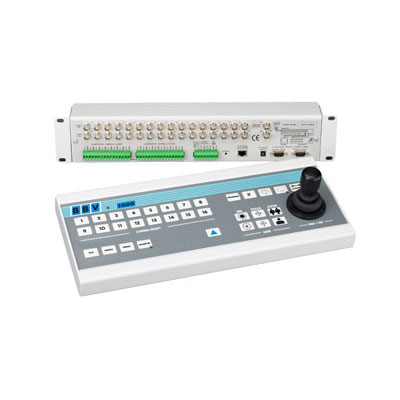

The dtx1000 series comprises a keyboard and base unit, which combines a programmable video switcher, with the simplicity of installation associated with coax controlled systems. With the appropriate Dedicated Micros receivers, the dtx1000 series can control a.c. and d.c. heads, JVC, Panasonic, Pelco domes and Mitsubishi cameras.

Coax, 16 channels, 2 outputs, 230 V AC, 10 W, 485 x 175

Coax, 8 channels, 2 outputs, 230 V AC, 10 W, 485 x 175

Size of Plinth: 450 x 348 x 80. Capable of operating up to 6 moving camera positions although the autopan function becomes inoperative. The eight position joystick control provides pan and tilt movement, up, down, left and right - or simultaneous combinations of pan tilt functions. Zoom and focus control is provided through push button switches on the front panel. Interlocking prevents simultaneous operation of both zoom and focus.

Coax/Twisted Pair, 1 channels, 1 outputs, 8 presets, 9 V AC, 100 mA, 1,800

Microwave and infrared links also available.

Programming switching functions pan tilt zoom focus iris wash/wipe lights VCR start on-screen titles & menus presets autopan RS232 tours c/w separate keyboard.

programming switching functions pan tilt zoom focus iris wash/wipe lights VCR start on-screen titles & menus presets autopan RS232 tours c/w separate keyboard. Joystick control for dc high & variable speed pan tilt heads.

An additional easy to use keyboard for the TX1500 matrix. This keyboard has intuitive symbols so it is simple and easy to use.

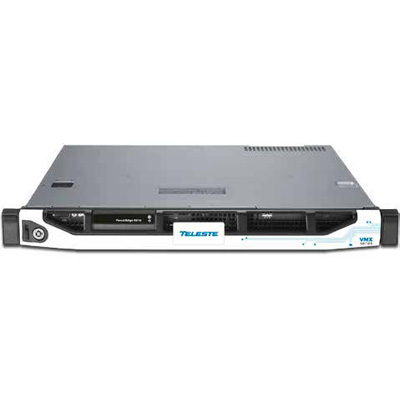

S-VMX video wall controller is an optional component of Teleste video system. It provides a cost efficient alternative for video wall systems.

The VTTi product range offers transmission of video signals over a telephone line or unshielded twisted pair. 0.609 KM Video & Audio (per set) for video and audio with female BNC & RCA for distances to 0.609 KM for colour & 0.9144 KM for B&W. This unit requires 2 twisted pair - one for video & one for audio.

The VTTi product range offers transmission of video signals over a telephone line or unshielded twisted pair. 0.609 KM Video, PTZ & Audio (per set) for video with PTZ controls and female BNC with distances to 0.609 KM for colour & 0.9144 KM for b/w. This unit allows the "up the coax"PTZ control signal to travel along the video.

The VTTi product range offers transmission of video signals over a telephone line or unshielded twisted pair. 0.365 KM Video & PTZ (per set) for video with PTZ controls & male BNC with distances to 0.365 KM for colour and black & white. This unit will allow the "up the coax" PTZ control signal to travel along the video.

The VTTi product range offers transmission of video signals over a telephone line or unshielded twisted pair. 0.609 KM Video & 2 channel Audio (per set) for video and 2 audio channels with female BNC & RCA jacks for distances to 0.609 KM for colour & 0.9144 KM for B&W. This unit requires 3 twisted pair-one for video and 2 for audio.

The VTTi product range offers transmission of video signals over a telephone line or unshielded twisted pair. For video with PTZ controls & 2 audio channel with female BNC and RCA jacks for distances to 0.609 KM for colour and 0.9144 KM for b/w. This unit will allow the "up the coax" PTZ control signal to travel along the video. This unit requires 3 twisted pair-one for video and two for audio.

0.243 km video only (per set) for video only with male BNC & distances to 0.243 KM for colour and black & white.

The VTTi product range offers transmission of video signals over a telephone line or unshielded twisted pair. 0.609 KM Video & PTZ (per set) for video only with female BNC for distances to 0.609 KM for colour and 0.9144 KM for black & white.

The VTTi product range offers transmission of video signals over a telephone line or unshielded twisted pair. For video with PTZ controls & one audio channel with female BNC and RCA for distances to 0.609 KM for colour and 0.9144 KM for b/w. This unit will allow the "up the coax" PTZ control signal to travel along the video. This unit requires 2 twisted pair-one for video and one for audio.

Dedicated Micros (Dennard) dtx 300 is a single camera controller for pan & tilt, lens and 1 auxiliary function operating over twisted pair or coax telemetry. It features low voltage operation as well as large range of receiver options. Keyboard is included.

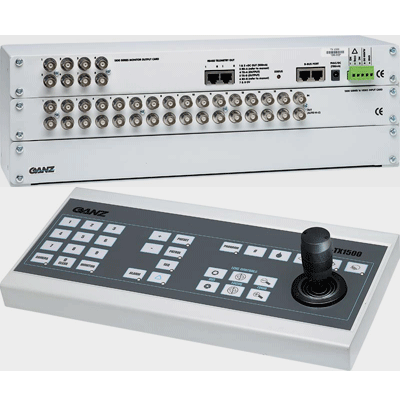

The ZP-TX1500 series supports RS485 twisted pair telemetry as standard, allowing integration with IR, microwave and fibre-optic links. Modules can be added allowing control of several different domes or receiver types on one system. Add on 16 way alarm cards with programmable functions are available for connection of up to 16 external detection devices. Up to 6 alarm cards can be added either local to the ZP-TX1500 or distributed around the site allowing up to 96 inputs.

The Ultraview KTD-404A features large, easy-to read buttons and a backlit, liquid crystal display (LCD). It communicaes with Digiplex components through an RS422 signal over twisted-pair wire.

The ZP-TX1500 series supports RS485 twisted pair telemetry as standard, allowing integration with IR, microwave and fibre-optic links. Modules can be added allowing control of several different domes or receiver types on one system. Add on 16 way alarm cards with programmable functions are available for connection of up to 16 external detection devices. Up to 6 alarm cards can be added either local to the ZP-TX1500 or distributed around the site allowing up to 96 inputs.

Twisted Pair, 1 outputs, 0 ~ 85, IP65, Weather Resistant, >60, 207 ~ 253 V AC, 4.9 W, -20 ~ +55, 120 x 55 x 122, 500

Twisted Pair, 1 channels, 0 ~ 85, IP65, Weather Resistant, >60, 207 ~ 253 V AC, 4 W, -20 ~ +55, 120 x 55 x 122, 500

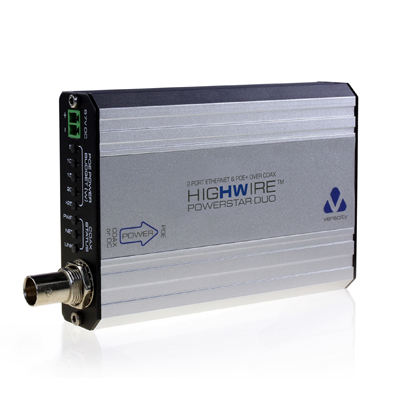

Re-uses existing coax cable for 2 IP cameras or devices Integrated 2-port POE switch (POE Plus with local power option) Eliminates separate power cabling with POE-over-Coax™ Compatible with all HIGHWIRE Powerstar Base units (1, 4 & 8ch) Instantly check connection and power level with SafeView™ Completely automatic connection, no configuration required 100BaseTX performance over 300m of RG59 (500m on RG11)

with Joystick, 12 V DC, 3 W, -5 ~ +60, 340 x 194 x 103, 1300

300 presets, with Joystick, 12 V DC, 5 W, 0 ~ 50, 96 x 380 x 168, 1.2 kg

508 channels, with Joystick, 12 VDC, 3 W, 0 ~ +50, 405 x 178 x 107 , 1,200

12 V DC, 250mA, -5 ~ +60, 370 x 190 x 83, 1500

Small, compact design Long-life lithium battery included Flexible mounting options (screw mount or press fit) Reliable 433 MHz technology Powerful, rare earth magnet Ships complete with flanged/non-flanged, brown/white access caps

pan tilt zoom focus iris wash/wipe lights autopan presets coax or twisted pair.joystick control of dc high & variable speed pan tilt heads

254 channels, with Joystick, 12 VDC, 10 W, 0 ~ 50, 88 x 400 x 230, 1,900
