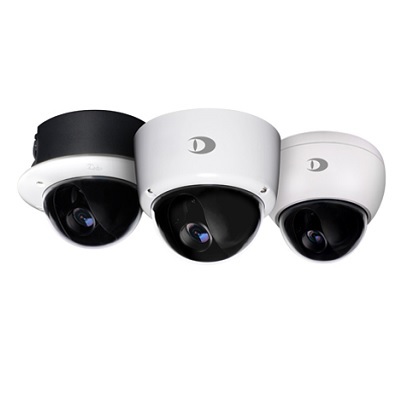

Dallmeier DDF5120HDV-DN-IM 2MP High Definition Camera
Technical Specification
Features:
- Make: Dallmeier
- Model code: DDF5120HDV-DN-IM
- Series: Primeline series
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
1/3" 4MP HD CMOS image sensor High light sensitivity 0.05lux Memory expansion with microSDXC card Video compression H.264, H.265, MJPEG Privacy Zone Masking Digital flip function
Read more| Make | Dallmeier |
|---|---|
| Category | Surveillance software products |
| Model code | DDF5120HDV-DN-IM |
| Series | Primeline series |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 1080p HD: 1 Megapixel: 1 Sensitivity lux: 0.05 Digital (DSP): 1 Focal length: 3 ~ 10 Compression: H.264, H.265, MJPEG Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/1 ~ 1/8000s S/ N (Signal/ Noise) Ratio dB: 50 Signal Mode: PAL, NTSC Built-in IR LED: 1 Video Output: 1× BNC (CVBS, 1.0Vp-p, 75Ω |
|
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 6 W |
| Network Properties |
Interface: 1× RJ45, 10BASE-T/100BASE-TX PoE Network Protocols: IPv4 (ARP, ICMP, IGMPv2/IGMPv3), UDP, TCP, LLDP, CDP (v1,v2), DSCP (QoS), DNS, DHCP, NTP, HTTP/HTTPS, RTSP/RTP/RTCP, SNMP (v1, v2c, v3) Image Frame Rate: 25 ~ 60 fps |
| Physical Specifications |
Dimensions mm: 170 x 135 Weight g: 1,200 |
| Environmental Specifications |
Operating Temp oC: -20 ~ +50 C (-4 ~ +122 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
| Download PDF version | |
